The home of premium-quality, custom-made carbon-fiber metal detector rods, shafts, and sand-scoop handles

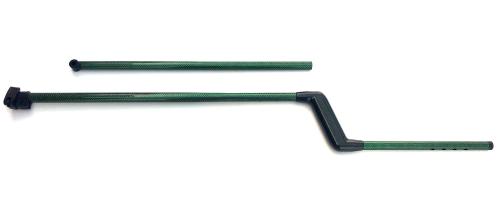

Garrett AT-series "Counterweight-Ready" Complete Carbon-Fiber S-Shaft

BRAND NEW!

Our "counterweight-ready" complete S-shaft system for the Garrett AT-series (AT Pro, AT Gold, AT MAX) features an all-carbon-fiber upper S-shaft, which includes 4 cuff-adjustment holes in the "bottom" tube of the upper shaft. In addition, this "bottom tube" is roughly 1 1/2" longer than the stock Garrett shaft. This extra length allows more distance to be achieved between the handle and the arm cuff, which results in improved ergonomics. Finally, this "bottom tube" of the upper shaft includes a threaded insert in the butt-end (to permit attachment of the counterweight), and a matching-threaded end cap (to cap the shaft when the counterweight is not being used).

The top tube of the upper shaft features one of our heavy duty, adjustable, removable clamp-type cam locks, which enables rock-solid attachment of the matching, 20-inch lower rod.

Additional lower rods can be purchased with any complete shaft, at a special add-on price of $55 (black)/$65 (colored).

Custom-length lower rods can also be substituted for the standard-length lower rod, upon customer request, for an additional $5.

Custom-designed 3-piece shafts are also available, upon customer request, for an additional $20.

Specifications:

Upper Shaft Length: ?? in.
Upper Shaft Weight: ?? oz. (??g)
Lower Rod Length: 20 in. (custom lengths available upon request)
Lower Rod Weight: ?? oz. (??g)
Material: Carbon-fiber (3K, twill pattern, glossy finish)
Cam Lock material: Injection-molded Plastic (nylon)
Handle material: 100% carbon fiber (black)
Threaded End Cap material: Delrin
Threaded Butt-End Insert material: Black Anodized Aluminum

Price: $169 + shipping (black), $189 + shipping (colored). Email to purchase!
Availability: IN STOCK

Garrett AT-series "Counterweight-Ready" Complete Carbon-Fiber S-Shaft
